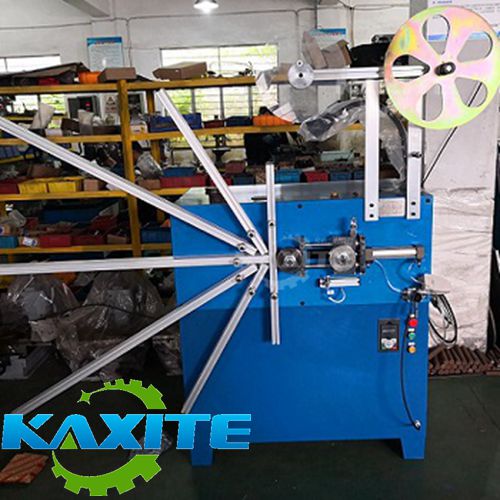

Medium Size Winder machine for making spiral wound gasket is used for making spiral wound gasket Diameter size from φ150-φ1500 mm, the machine can produce spiral wound gasket with inner ring or without inner ring. Drive system in maintenance-free mode. It can produce different size spiral wound gasket when Speed adopts frequency conversion speed regulation
Power: 380AV, 0.4KW , L x W x H = 115 x 76 x 130cm , N.W.: appr. 600KGS , Work Range: ID300 ~ 2500mm,Thickness: 4.5mm, Other thickness3.2mm on request .
| Working life | 80,000 Hours | Weight | 210kg |
| Color | Blue | power | 0.4kw |
| Gasket nominal thickness | 3.2mm or 4.5mm | Voltage | 380/220V |
| Maximum Outer Diameter | 1500mm | Warranty | 2 years |
| Minmum inner Diameter | 150mm | Air Pressure | 6-8BAR |
| Repeatability of outer diameter | +/-0.2mm | MOQ | 1 Piece |
| Rotational Speed | 0-200rpm | Dimension | 115*76*130cm |
